Fanox ES Soft Starter

Fanox ES – Soft Starter & Motor Controller | 3-Phase up to 22 kW / 400V

SKU FANOX-ES
Fanox ES soft starter for 3-phase induction motors up to 22 kW/400V. Built-in bypass relay eliminates cooling need. Reduces start/stop torque, avoids water hammer.
Panel Mount CE Certified
Request Quote

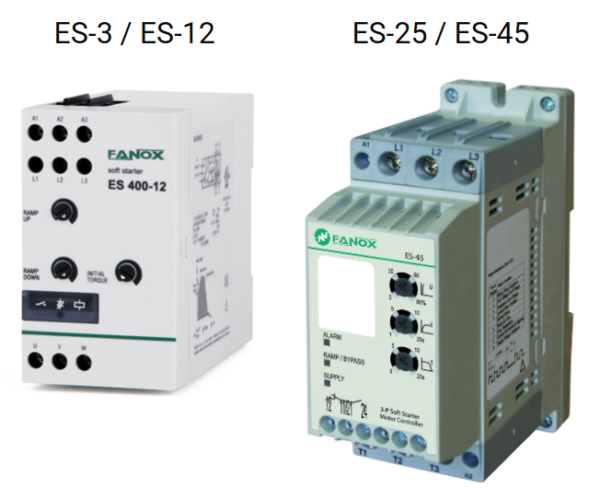

Fanox ES – Soft Starter & Motor Controller

The Fanox ES soft starter provides progressive ramp-up and ramp-down control for 3-phase induction motors up to 22 kW / 400 V, eliminating damaging current surges and mechanical stress at start and stop. Its integrated electromechanical bypass relay takes over after starting, removing the need for forced cooling.

  • 3-phase induction motors up to 22 kW / 400 V
  • Built-in heat dissipator and electromechanical bypass relay
  • Replaces conventional contactors — lower maintenance cost
  • Optimised mechanical dimensioning for panel space saving
  • No cooling required after start (bypass relay active)
  • Reduces start and stop torque — avoids mechanical problems and water hammer
  • Progressive startup and shutdown prevents pipe damage in pump applications

The ES soft starter is the ideal complement to Fanox pump protection panels (CBS series) and is widely used in water treatment, irrigation, HVAC, and industrial conveyor systems.
