Fanox GL – Integral Motor Protection Relay | 7 Trip Classes 1–630A
SKU
FANOX-GL
Fanox GL integral relay covers any motor start or working cycle. 7 trip classes, PTC overtemperature, phase sequence detection, 1–630A up to 1000 Vac.
DIN Rail
Panel Mount
CE Certified

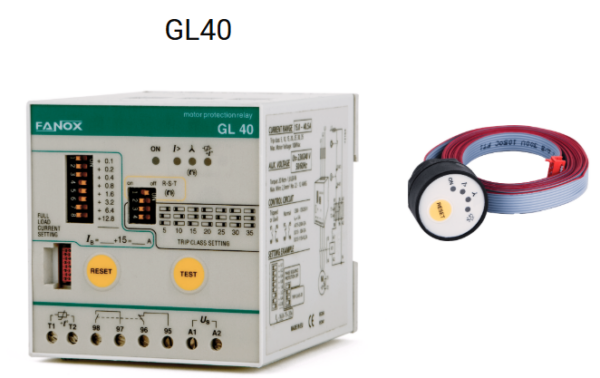

Fanox GL – Integral Motor Protection Relay
The Fanox GL relay is the market benchmark for comprehensive 3-phase motor protection. Its 7 selectable trip classes (5, 10, 15, 20, 25, 30, 35) make it suitable for every starting and working cycle, from pumps and compressors to cranes and air-conditioning units. An integrated PTC thermistor input adds real winding-temperature protection.
- Protects 3-phase LV motors 1–630 A and over, up to 1,000 Vac
- 7 trip classes for any starting or working cycle (5–35)
- Continuous thermal-image memory for heating and cooling cycles
- Instant phase-loss detection even at reduced load
- Overtemperature protection via PTC thermistor sensor
- Phase-sequence monitoring (incorrect phase sequence trip)
- Discriminative LED trip-cause indication
- Optional external display module (Ø22 mm) for MCC installations
- 3-year manufacturer warranty
The GL relay is the preferred choice for Motor Control Centres (MCC), pumps, compressors, centrifugal machines, cranes, valves, air-conditioning, and industrial refrigeration.
| Specification | Value |
|---|---|
| Product Series | GL Series |
| Protection Functions | Overload Protection, Phase Loss Protection, Phase Imbalance, Phase Sequence, Overtemperature, Thermal Image Memory, Dry Running Detection, Earth Leakage |
| Application / Industry | Motor Control Centers, Control Panels, Pumps & Water Systems, Industrial Refrigeration, Cranes & Hoists, HVAC Systems, Compressors, Conveyor Belts |
| Mounting Style | DIN Rail, Panel Mount |
| Certifications | CE Certified |
