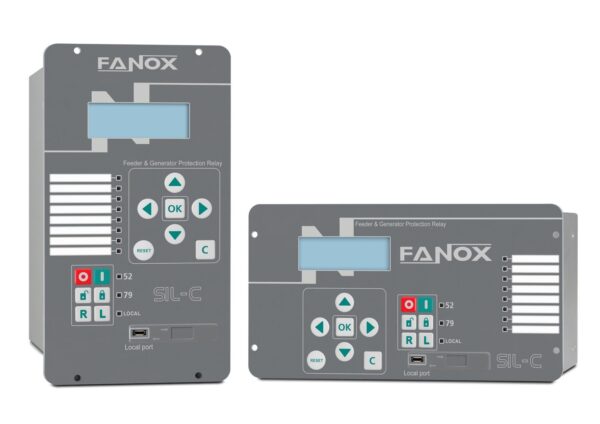

Fanox SIL-C – Compact Directional Feeder & Generator Protection Relay with Synchrocheck
Fanox Compact Directional

Fanox SIL-C – Compact Directional Feeder & Generator Protection Relay with Synchrocheck

SKU FANOX-SIL-C
Fanox SIL-C is a compact feeder and generator protection relay with current, voltage, and frequency protection. Measures up to 1,000 V directly on LV line; 4 current + 5 voltage channels. Synchrocheck, islanding/ROCOF, 11 inputs / 5 outputs. IEC60870-5-103/104. KEMA certified.
Technical documents available — View documents
KEMA Certified CE Certified
Request Quote

Fanox SIL-C — Compact Directional Feeder & Generator Protection with Synchrocheck

The SIL-C is Fanox's all-in-one compact relay for industrial and utility MV switchgear. It combines feeder protection with generator decoupling, load shedding, and Loss of Main (islanding) detection in a compact device, with the added capability of measuring up to 1,000 V directly on a low-voltage line.

Key Features

  • Auxiliary supply: 24–230 Vdc/ac
  • 4 current channels (/1 A and /5 A conventional CTs)
  • Up to 5 voltage channels (conventional VTs); LV direct measurement up to 1,000 V
  • Protection against decoupling, load shedding, and Loss of Main (islanding) via voltage, frequency & ROCOF
  • Synchrocheck (25) for safe automatic reclosing
  • 11 configurable inputs + 5 configurable outputs
  • Circuit breaker (52) and recloser (79) control & signalling
  • Communication: Front micro-USB; Rear serial – IEC60870-5-103; Rear Ethernet – IEC60870-5-104
  • Oscillography downloadable via SICom (COMTRADE format)
  • KEMA certified
