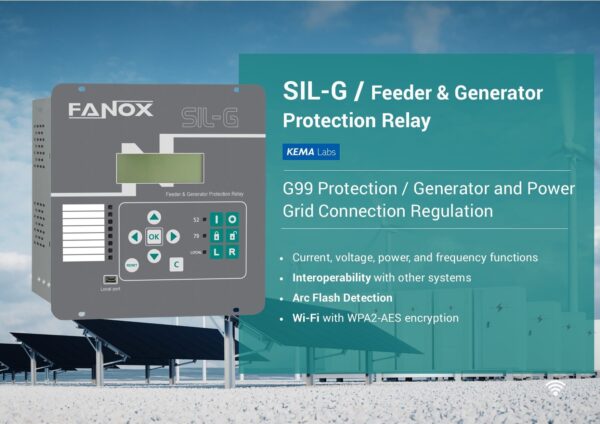

Fanox SIL-G – Directional Feeder & Generator Protection Relay (CTs/VTs)
SKU
FANOX-SIL-G
Fanox SIL-G is a comprehensive feeder and generator protection relay for primary MV distribution. Protects against decoupling, load shedding, and Loss of Main (islanding) with Arc Flash Detection option. Self-powered via VTs or aux supply (24–230 Vdc/ac). IEC61850, Modbus, DNP3, IEC60870-5-103/104. KEMA certified.
Technical documents available —
View documents
KEMA Certified
CE Certified
Fanox SIL-G — Feeder & Generator Protection Relay for Primary Distribution
The SIL-G is Fanox's premium relay for primary distribution feeders and generator protection. It combines current and voltage functions (including directional, frequency, and ROCOF) with Arc Flash Detection and an optional self-powered mode through VTs, eliminating the need for external auxiliary supply in many installations.
Key Features
- Self-powered via VTs, or auxiliary supply: 24–220 Vdc/48–230 Vac, 48–230 Vdc/ac, or 24–48 Vdc (model-dependent)
- Measures up to 1,000 V when connected directly to LV line
- Arc Flash Detection: 4 AFD inputs + 4 high-speed outputs (model-dependent)
- WiFi connectivity for safe wireless access during maintenance
- Protection against Loss of Main (islanding) via voltage, frequency, and ROCOF
- Generator protection: decoupling, load shedding, loss-of-main detection
- Suitable for cogeneration: gas/steam/hydraulic turbine, diesel generators
- Communications: IEC61850, Modbus RTU/TCP, DNP3.0, IEC60870-5-103/104 + SNTP + Web Server
- KEMA certified for highest reliability assurance
Technical Documentation
Datasheets
User Manuals
- User Manual EN (R117) (registration required)
- User Manual ES (R117) (registration required)
Protocol Manuals
- Modbus RTU Protocol Manual (R012) (registration required)
- IEC61850 Protocol Manual (R011) (registration required)
- IEC60870-5-103 Manual (R001) (registration required)
- DNP3 Protocol Manual (R002) (registration required)
- IEC60870-5-104 Manual (R001) (registration required)
Certificates
- KEMA Certificate (Final-1539-20-R1) (registration required)
Additional Resources
- All Documents & Downloads (registration required)
| Specification | Value |
|---|---|
| Product Series | Directional Feeder |
| ANSI Protection Functions | ANSI 25 (Synchrocheck), ANSI 27, ANSI 32 / 40, ANSI 37, ANSI 46, ANSI 49, ANSI 49T, ANSI 50, ANSI 50BF, ANSI 50G / 50N, ANSI 51, ANSI 51G / 51N, ANSI 52, ANSI 59, ANSI 67, ANSI 67N, ANSI 74TCS, ANSI 79, ANSI 81 U/O, ANSI 86 |
| Communication Protocols | DNP3 TCP, DNP3.0, Ethernet, IEC60870-5-103, IEC60870-5-104, IEC61850, Modbus RTU, Modbus TCP, RS485, SNTP, Web Server, WiFi |
| Certifications | KEMA Certified, CE Certified |
