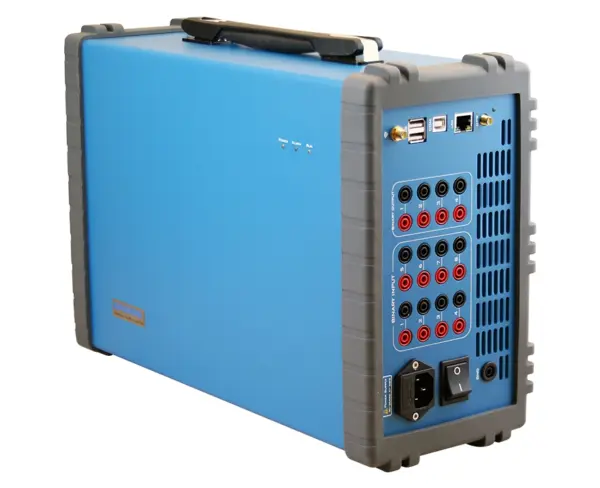

Kingsine KF85P Universal Relay Test Set | IEC61850 | 6×35A 6×310V | 10kg | Substation Testing
SKU: KF85P
In stock · Ready to ship
Key Features
The world's lightest & high power universal relay test set.
- 6×35A@425VA max & 6×310V@105VA max analog outputs
- 10kg weight, easy carry on flight journey
- Low-level signals output, energy meter testing, transducer calibration, IEC61850 testing (optional)
Basic Functions
- 12 Analog Channels (6×35A & 6×310V); independent/simultaneous control of magnitude, phase angle & frequency; DC, AC sine wave and up to 60× harmonics
- Lightweight <10kg, easy carry on flight journey
- Variable battery simulator: 24~350Vdc, 70W max output
- KRT software: full test management, graphical modules, Xrio/Rio import/export
- Transient playback up to 3KHz; 8×100/1000Mbit Fiber ports for IEC61850 SMV/GOOSE
- Inbuilt GPS and IRIG-B synchronized end-to-end testing
- 10 binary inputs (dry/0-300V); 4 fast binary outputs <1ms response
- AC 85~265 / DC 127-350V wide range power supply
- 3-Year free warranty; free software upgrade
Advanced Features
- IEC61850 ed. 1.0 & 2.0 compliant
- Transducer calibration
- Energy meter calibration (Mechanical & Electronic)
- 10 low-level analog outputs (8V/20mA max)
Technical Specifications
| AC Current Source | 6×35A @424VA max; 3×70A @670VA max; Accuracy <0.015%Rd+0.005%Rg Typ. |
|---|---|
| DC Current Source | 3×20A @400W max |
| AC Voltage Source | 6×310V @105VA max; Accuracy <0.015%Rd+0.005%Rg Typ. |
| Frequency | DC~1000Hz, 3000Hz transient; Resolution 0.001Hz |
| Phase | -360°~360°; Accuracy <0.1° Guar. 50/60Hz |
| Binary Inputs | 10 pairs; Timing accuracy <±1ms |
| Binary Outputs | 4 fast pairs <1ms response |
| Power | AC 85~265V / DC 127-350V |
| Weight | ~10kg |
Ordering Options
Ordering Options
- IEC61850 SV/GOOSE: Optional
- Low-Level Outputs: Optional
- Energy Meter Calibration: Optional
- Transducer Calibration: Optional
