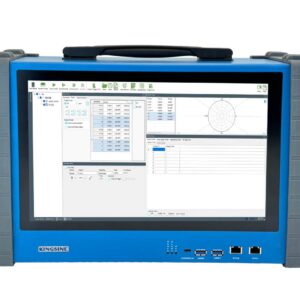

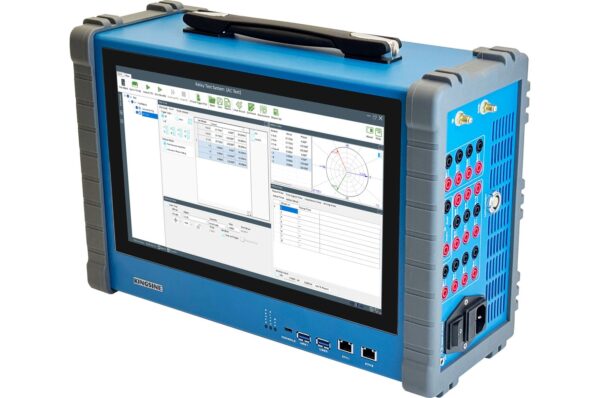

Kingsine KF86P Universal Relay Test Set | 6×35A 6×310V | Secondary Injection | 10kg
Kingsine

Kingsine KF86P Universal Relay Test Set | 6×35A 6×310V | Secondary Injection | 10kg

SKU KF86P
World's lightest high-power relay tester at 10kg. 6×35A & 6×310V outputs (425VA/105VA max), 13.3" touch screen, IEC61850 SV/GOOSE ready, 10 binary inputs, 4 fast outputs. Flight-portable substation testing solution.
Optional Add-on Portable (<15kg)
Request Quote

Kingsine KF86P — World's Lightest High-Power Universal Relay Test Set

The Kingsine KF86P Universal Relay Test Set is the definitive field-portable secondary injection test kit for engineers who need maximum testing power without sacrificing mobility. At just 10 kg, it delivers 6×35A @425VA max current outputs and 6×310V @105VA max voltage outputs — all in a package light enough to carry on a commercial flight.

Key Highlights

  • ✅ 12 independent analog channels — 6×35A & 6×310V; simultaneous magnitude, phase & frequency control
  • ✅ High power outputs — 3×70A @670VA max (parallel); DC current 3×20A @400W
  • ✅ Flight-portable at 10 kg — the world's lightest test set in this power class
  • ✅ 13.3" built-in touch screen + full KRT PC software control
  • ✅ IEC61850 ed. 1.0 & 2.0 compliant — 8× fiber ports for SMV & GOOSE (optional)
  • ✅ Variable battery simulator — 24–350Vdc, 70W for powering protection devices under test
  • ✅ GPS & IRIG-B synchronized end-to-end testing
  • ✅ 10 binary inputs (dry / 0–300V) + 4 fast binary outputs (<1ms)
  • ✅ Wide power supply — AC 85–265V / DC 127–350V worldwide compatibility
  • ✅ 3-Year free warranty + lifetime maintenance + free KRT software upgrades

Advanced Optional Features

  • IEC61850 SV & GOOSE testing (Edition 1.0 & 2.0)
  • Transducer calibration
  • Energy meter calibration (mechanical & electronic)
  • 10 low-level analog outputs (8V/20mA max) for LPIT/MU testing

KRT Software

Full-function test management, graphical modules, 500+ relay templates (ABB, Siemens, GE, SEL), XRIO/RIO import, auto assessment & report generation. 11 language support.

Certifications

CE | UL | ISO 9001 | ISO 14001
