SATEC BFM136 – Multi-Circuit Energy Meter for Up to 36 Current Channels

SKU BFM136
The SATEC BFM136 is a multi-circuit energy meter monitoring up to 36 current channels (12 three-phase circuits). Uses HACS high accuracy split-core CTs. Ideal for substation branch feeder monitoring and multi-tenant billing. Modbus, BACnet, DNP3 communication.
DIN Rail IEC & ANSI
Request Quote

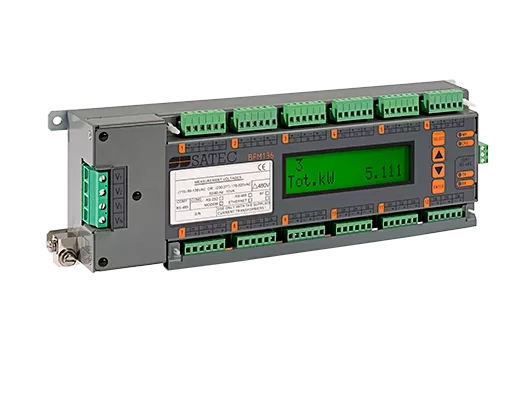

SATEC BFM136 – Multi-Circuit Energy Meter (Up to 36 Channels)

The SATEC BFM136 is a multi-circuit energy meter designed for applications requiring simultaneous metering across many load points. With support for up to 36 current channels (equivalent to 12 three-phase circuits), it significantly reduces hardware and installation costs compared to deploying individual meters.

Built around SATEC's High Accuracy Current Sensor (HACS) technology with split-core CTs, the BFM136 can be installed without disconnecting existing loads – making it an ideal retrofit solution.

Multi-Circuit Metering

  • Up to 36 current channels (12 three-phase circuits, or mixed single/three-phase)
  • Individual energy, demand, and power factor per circuit
  • TOU billing capability for multi-tenant applications

Current Sensing Technology

  • HACS split-core CTs (40 mA output) – no load disconnection required
  • Available CT ratings: 100A through 3,000A
  • Retrofit installation on live circuits

Communication

  • RS-485 | Ethernet
  • Modbus RTU/TCP | BACnet | DNP3.0

Mounting

  • DIN-rail mount
