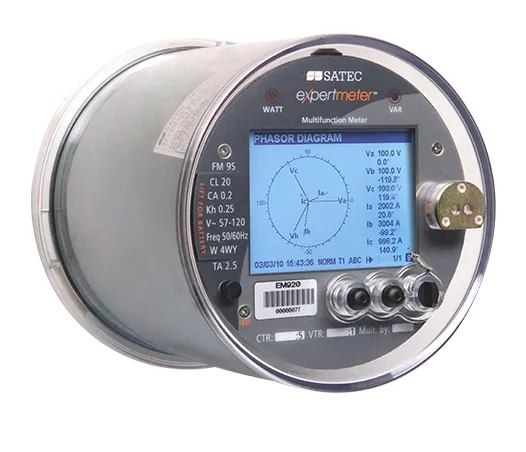

SATEC EM920 eXpertMeter – Revenue Meter & Class A PQ Analyzer | ANSI | Socket-Mount
SKU: EM920
In stock · Ready to ship
Specifications
| Mounting Style | Socket Mount |
The EM920 is the ANSI version of the eXpertMeter™ Series, designed for North American socket-mount installation. Same dual functionality as EM720:
Key Highlights
The EM920 is the ANSI version of the eXpertMeter™ Series, designed for North American socket-mount installation. Same dual functionality as EM720
- PQ Analyzer & Power Meter – for utility SCADA teams
- Revenue Meter – for utility billing
Key highlights
- ANSI socket-mount design
- Revenue grade: Class 0.2S accuracy
- Class A PQ analyzer
- IEC 61850, DNP3, Modbus communication
Technical Specifications
| Revenue Meter | |
|---|---|
| Class 0.2S accuracy for active energy | |
| Advanced TOU features | |
| Power Quality | |
| Class A, Ed. 3.1 PQ analyzer | |
| EN50160 / IEEE 1159 reporting capabilities | |
| Harmonic analysis, waveform capture | |
| Communication | IEC 61850; DNP3; Modbus RTU/TCP |
| Mounting | ANSI socket-mount |
Available Models
- EM920: ANSI socket-mount version
- EM720: IEC wall-mount version
