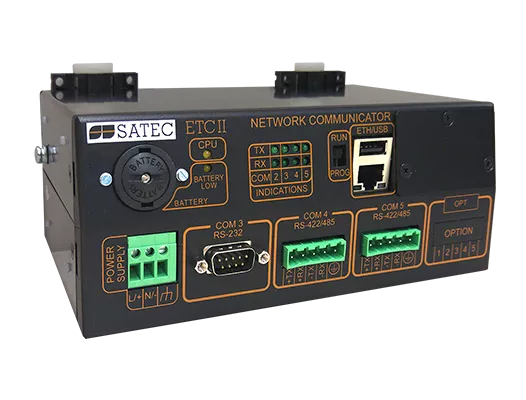

SATEC ETC-II – Advanced Gateway, Data-Logger & Protocol Converter
SATEC

SATEC ETC-II – Advanced Gateway, Data-Logger & Protocol Converter

SKU ETC-II
The SATEC ETC-II is an advanced communication gateway, data-logger, and protocol converter. Collects and stores metering data from connected RS-485 meters locally while simultaneously converting protocols (Modbus, DNP3, BACnet, IEC 60870). Upgrade of ETC One Plus with built-in data logging.
DIN Rail IEC & ANSI
Request Quote

SATEC ETC-II – Gateway, Data-Logger & Protocol Converter

The SATEC ETC-II is the advanced version of the ETC One Plus, adding powerful built-in data-logging to the gateway and protocol conversion capabilities. The ETC-II not only bridges RS-485 serial meters to Ethernet networks, but also stores metering data locally – providing data resilience, historical reporting, and offline operation.

Data Logging

  • Local storage of metering data from all connected meters/devices
  • Configurable logging intervals (minutes to hours)
  • Historical data available for reporting and analysis
  • Data continuity even during network outages

Protocol Conversion

  • RS-485 (serial) to Ethernet
  • Modbus RTU ↔ Modbus TCP
  • DNP3 serial ↔ DNP3/TCP
  • BACnet MS/TP ↔ BACnet/IP
  • IEC 60870-5-101 ↔ IEC 60870-5-104

Physical Interfaces

  • Multiple RS-485 serial ports
  • Ethernet 10/100Base-T

Mounting & Power

  • DIN-rail mount
  • Power: 12–48V DC
