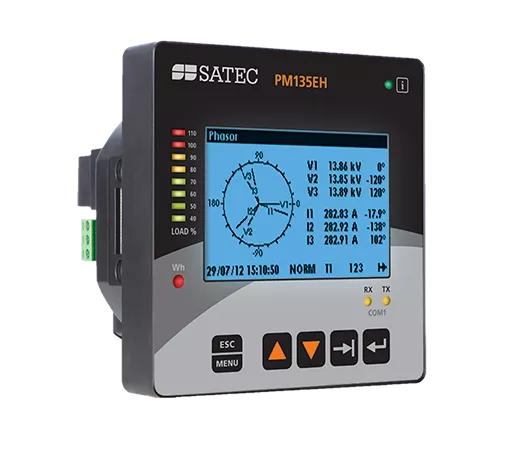

SATEC PM135 – Compact Multi-function Power Meter with LCD Display
SATEC

SATEC PM135 – Compact Multi-function Power Meter with LCD Display

SKU PM135
The SATEC PM135 is a compact, cost-effective multi-function three-phase power meter with integrated LCD display, Modbus RTU communication, and built-in digital I/O. Ideal for industrial and commercial energy monitoring. Panel-mount or transducer versions available.
Panel Mount
Request Quote

SATEC PM135 – Compact LCD Power Meter

The SATEC PM135 is a slim, cost-effective panel-mount power meter with an integrated LCD display. It is designed for straightforward energy and power monitoring in industrial, commercial, and HVAC applications where a compact footprint and simple integration are priorities.

Power Measurements

  • True RMS voltage, current, active/reactive/apparent power, energy
  • Power factor, frequency, demand metering
  • 3-phase and single-phase measurement capability

Communication

  • RS-485 with Modbus RTU
  • Easy SCADA/BMS integration

I/O

  • Built-in digital inputs and outputs for pulse/alarm functionality

Models & Mounting

  • PM135 – Standard LCD panel-mount version
  • RPM035 – Transducer version (no display, DIN-rail)
  • Panel-mount: standard 96×96 mm DIN cutout
