SATEC PM172 – High Accuracy Class 0.2S Advanced Power Meter

SKU PM172
The SATEC PM172 is a high accuracy (Class 0.2/0.2S) advanced power meter offering comprehensive power quality analysis features including harmonic analysis, waveform capture, and TOU billing. EN50160/IEEE 1159 statistical reports not included. Part of the PM17x family.
Panel Mount IEC & ANSI
Request Quote

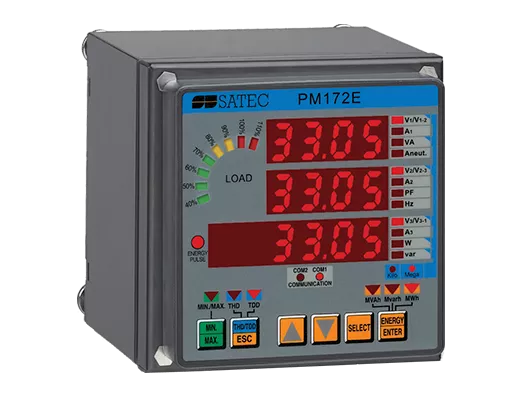

SATEC PM172 – High Accuracy Advanced Power Meter

The SATEC PM172 is the advanced power meter tier within the PM17x family. It delivers Class 0.2/0.2S revenue-grade accuracy with comprehensive power quality analysis – harmonic measurement, waveform capture, voltage events detection – without the regional PQ statistical reporting modules (EN50160 or IEEE 1159) that differentiate the PM175 and PM174 respectively.

This makes the PM172 the ideal choice when high-accuracy metering and power quality monitoring are required, but full PQ compliance reporting is not needed for the application.

Power Measurements

  • True RMS voltage, current, active/reactive/apparent power, energy
  • Power factor, frequency, demand; neutral current
  • Class 0.2/0.2S revenue-grade accuracy

Power Quality (Monitoring)

  • Harmonic analysis up to 63rd order; THD, TDD, K-factor
  • Waveform capture and recording
  • Voltage dips/sags/swells detection and logging
  • Note: EN50160 / IEEE 1159 statistical reports not included

Communication & I/O

  • IEC 61850 | Modbus | DNP3 | IEC 60870-5 | RS-485 | Ethernet
  • Built-in: 1 RO, 2 DI, 1 AI; optional I/O expansion

Display & Mounting

  • LED 7-segment display; panel mount 92×92 mm
