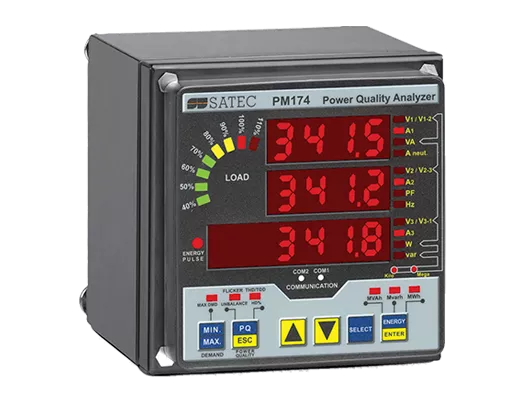

SATEC PM174 – IEEE 1159 Class A Power Quality Analyzer (North American Market)
SATEC

SATEC PM174 – IEEE 1159 Class A Power Quality Analyzer (North American Market)

SKU PM174
The SATEC PM174 is a panel-mounted Class A Ed. 3.1 power quality analyzer with full IEEE 1159 PQ reports for the North American market. Class 0.2S revenue metering, IEC 61850, LED display with load-bar. Part of the PM17x family.
Panel Mount ANSI
Request Quote

SATEC PM174 – IEEE 1159 Power Quality Analyzer (North American)

The SATEC PM174 is SATEC's North American market power quality analyzer in the PM17x family, providing comprehensive IEEE 1159 power quality reports and statistics for compliance with North American grid codes and industrial standards.

Sharing the same high-quality hardware platform as the PM175, the PM174 delivers Class A, Ed. 3.1 power quality analysis and Class 0.2S revenue metering in a single 92×92 mm panel-mount device.

IEEE 1159 Power Quality

  • Full IEEE 1159 reports and statistics (North American standard)
  • Class A, Ed. 3.1 analyzer per IEC 61000-4-30
  • Voltage dips, sags, swells, interruptions, unbalance, transients
  • THD, harmonics up to 63rd order; IEEE 519 analysis
  • Waveform capture up to 256 samples/cycle

Revenue Metering

  • Class 0.2/0.2S per IEC 62053-22 / ANSI C12.20
  • Advanced TOU features

Communication & I/O

  • IEC 61850 | Modbus | DNP3 | IEC 60870-5-101/104 | RS-485 | Ethernet
  • Built-in: 1 RO, 2 DI, 1 AI

Display & Mounting

  • LED 7-segment display with LED load-bar
  • Panel mount: 92×92 mm cutout
