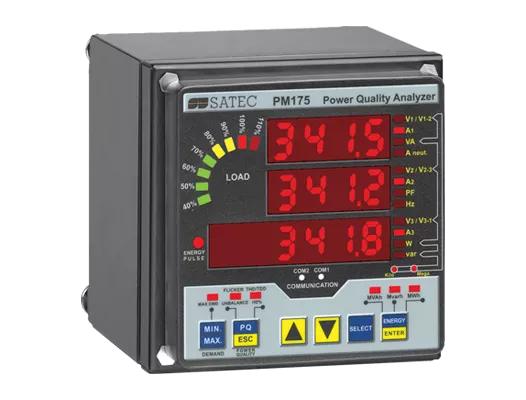

SATEC PM175 – EN50160 Class A Power Quality Analyzer (European Market)

SKU PM175
The SATEC PM175 is a panel-mounted Class A Ed. 3.1 power quality analyzer with full EN50160 PQ reports for the European market. Class 0.2S revenue metering, IEC 61850, LED display with load-bar, and ABB MV sensor interface (KEVA/KECA/KEVCY). Part of the PM17x family.
Panel Mount IEC
Request Quote

SATEC PM175 – EN50160 Power Quality Analyzer (European)

The SATEC PM175 is SATEC's European market power quality analyzer within the PM17x family, providing comprehensive EN50160 power quality reports and statistics as mandated in European grid codes and industrial standards.

Featuring a bright LED 7-segment display with integrated LED load-bar, it enables quick on-site parameter readings even in poorly lit environments. Full SCADA integration is provided via IEC 61850, Modbus, DNP3, and IEC 60870 protocols.

EN50160 Power Quality

  • Full EN50160 reports and statistics (European standard)
  • Class A, Ed. 3.1 analyzer per IEC 61000-4-30
  • Voltage dips, sags, swells, interruptions, unbalance, transients
  • THD, harmonics up to 63rd order; IEEE 519 analysis
  • Waveform capture up to 256 samples/cycle

Revenue Metering

  • Class 0.2/0.2S accuracy per IEC 62053-22
  • Advanced TOU billing features

ABB Medium Voltage Sensor Interface

  • Compatible with ABB KEVA, KECA, KEVCY, KEVCD MV sensors
  • Enables high-accuracy metering on MV protection sensor outputs

Communication & I/O

  • IEC 61850 | Modbus | DNP3 | IEC 60870-5-101/104
  • RS-485 | Ethernet
  • Built-in: 1 RO, 2 DI, 1 AI

Display & Mounting

  • LED 7-segment display with LED load-bar
  • Panel mount: 92×92 mm cutout
