SATEC PM17x PRO – Advanced Class A Power Quality Analyzer & Revenue Meter

SKU PM17x PRO

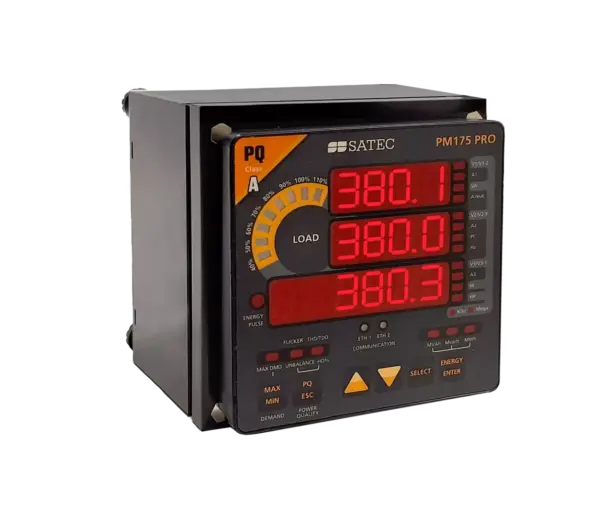

The SATEC PM17x PRO is a high-performance, panel-mounted Class A Ed. 3.1 power quality analyzer and Class 0.2S revenue meter in one device. Features IEC 61850, dual-port Ethernet, DNP3, LED display, 16 GB logging, and versatile current inputs (1A/5A/HACS/LPIT). Available in European (PM175 PRO – EN50160) and North American (PM174 PRO – IEEE 1159) variants.
Panel Mount | DIN Rail IEC & ANSI
Request Quote

SATEC PM17x PRO – Class A Power Quality Analyzer & Revenue Meter

The SATEC PM17x PRO Series combines the trusted PM17x form factor with next-generation PRO Series capabilities. Panel-mounted with a bright LED display, it delivers Class A, Ed. 3.1 power quality analysis (IEC 61000-4-30) alongside Class 0.2S/0.2 revenue-grade metering – making it a single-device solution for utility substations and industrial power monitoring.

Unique to the PM17x sub-series: an IRIG-B input for precision time-synchronization and a fourth voltage input (Vref) for enhanced monitoring accuracy.

Power Quality

  • Class A, Ed. 3.1 analyzer per IEC 61000-4-30 (PM174/175 PRO)
  • EN50160 reports & statistics – PM175 PRO (European market)
  • IEEE 1159 reports & statistics – PM174 PRO (North American market)
  • IEEE 519 harmonic analysis; harmonics up to the 63rd order
  • Waveform capture up to 256 samples/cycle; pre/post-fault recording
  • Voltage Dips, Sags, Swells, Interruptions, Unbalance, Transients
  • Leakage current detection via 4th current input
  • Up to 0.0001 Hz frequency resolution

Revenue Metering

  • Class 0.2S/0.2 per IEC 62053-22 / ANSI C12.20
  • Advanced TOU: 16 energy sources, 4 seasons, 4 daily profiles, 8 tariffs
  • Wide-range voltage inputs: up to 1,000V AC

Communication & Connectivity

  • Dual-Port Ethernet 10/100Base-T with RSTP support
  • IEC 61850 | Modbus RTU/TCP | DNP3.0/TCP | IEC 60870-5-101/104
  • RS-485 | USB type-C | IRIG-B time synchronization

Current Input Options

  • Standard 1A or 5A inputs
  • 40 mA HACS inputs for clip-on CTs (100–3,000A)
  • RS5: 5A clip-on HACS for retrofit on existing CT secondary
  • LPIT: RJ45 inputs for Low-Power Instrument Transformers (up to 650A)

Built-in I/O

  • 1 Analog Input (±1 mA / 0–1 mA / 0–20 mA / 4–20 mA)
  • 1 SSR Output (100 mA / 250V AC/DC)
  • 1 Digital Input (internally wetted @ 24V DC)
  • Optional: up to 3 add-on I/O modules (8DI, 4DO, 4AO combos)

Data Logging

  • 16 GB onboard memory
  • 64 control setpoints; 16 fast data recorders; 32 counters; 16 timers

Mounting & Power

  • Panel mount: 4" round or 92×92 mm square cutout
  • DIN-rail (RPM07x transducer version)
  • Power: 100–277V AC / 100–290V DC (optional 24V DC auxiliary)

Standards: IEC/AS 62052-11, IEC 62053-22/24, IEC 61557-12 (PMD-Sx), EN 50470, ANSI C12.1/20
