SATEC PM180 – All-in-One Class A Power Quality Analyzer with Color LCD Display

SKU PM180
The SATEC PM180 is a panel-mounted all-in-one Class A Ed. 3.1 power quality analyzer and Class 0.2S revenue meter with a 4.3" color graphical LCD display. Supports IEC 61850, dual-port Ethernet, 16 GB logging, EN50160 and IEEE 1159 PQ reports. Also available as portable EDL180 for field use.
Panel Mount IEC & ANSI
Request Quote

SATEC PM180 – All-in-One Power Quality Analyzer

The SATEC PM180 is a feature-rich, panel-mounted power quality analyzer and revenue meter that puts a large 4.3" color graphical LCD touch display directly on the meter face. Designed for industrial facilities, utility substations, and data centers where on-site parameter visibility is critical.

Power Quality Analysis

  • Class A, Ed. 3.1 per IEC 61000-4-30
  • EN50160 reports (PM180/EU – European) and IEEE 1159 reports (PM180/US – North American)
  • Waveform capture up to 256 samples/cycle
  • Harmonics up to 63rd order; IEEE 519 analysis; THD, TDD, K-factor
  • Voltage dips, sags, swells, interruptions, transients

Revenue Metering

  • Class 0.2S / 0.2 per IEC 62053-22
  • Advanced TOU billing features

Display

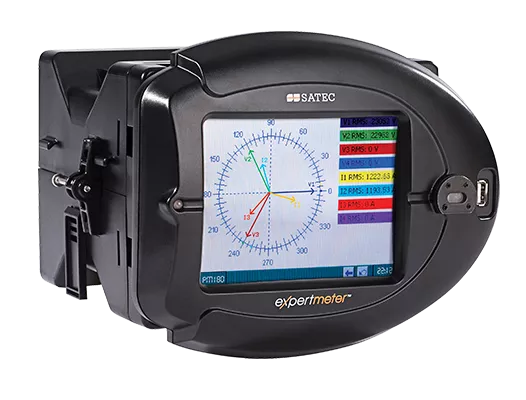

  • 4.3" color graphical LCD display – built into the front panel
  • Real-time display of parameters, waveforms, trends, and alarms
  • Compatible with RGM180 external graphic touch-screen (accessory)

Communication

  • Dual-Port Ethernet 10/100Base-T | RS-485 | USB
  • IEC 61850 | Modbus RTU/TCP | DNP3 | IEC 60870-5

Data Logging

  • 16 GB onboard memory; 64 control setpoints; 16 data recorders

Models

  • PM180/EU – EN50160 European PQ reports
  • PM180/US – IEEE 1159 North American PQ reports
  • EDL180 – Portable field version with battery

Mounting

  • Panel mount: 92×92 mm square cutout
