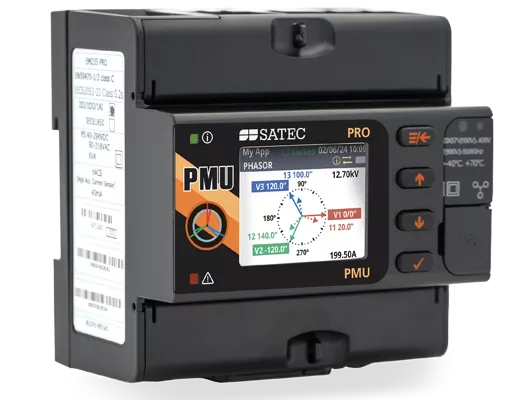

SATEC PMU PRO – IEEE C37.118 Phasor Measurement Unit | WAMS | IEC 61850
SKU: PMU PRO
In stock · Ready to ship
A Phasor Measurement Unit (PMU) – the essential building block for Wide Area Monitoring Systems (WAMS). These systems provide real-time health checks of nation-wide transmission grids, predicting and helping to prevent power failures. By interfacing GPS receivers/clocks or using Precision Time Protocol (PTP), the PMU PRO reaches micro-second precision, providing razor-sharp snapshots of measured parameter angles.
Key Highlights
By interfacing GPS receivers/clocks or using Precision Time Protocol (PTP), the PMU PRO reaches micro-second precision, providing razor-sharp snapshots of measured parameter angles.
- Full IEEE C37.118.1 / IEC 60255-118-1:2018 compliance (M-Class and P-Class)
- Dual Protocol: IEC 61850-9-2 and IEEE C37.118.2
- Versatile micro-second time-sync: PTP and IRIG-B
- Up to 240 frames/sec
- Super-compact design
- Expected Steady State TVE at nominal frequency < 0.05%
Technical Specifications
| Phasor Measurement | |
|---|---|
| IEEE C37.118.1-2011, IEEE C37.118.1a-2014 and IEC/IEEE 60255-118-1:2018 P-Class and M-class compliance | |
| Synchronized three-phase voltage, current, positive and negative sequence phasor measurements | |
| Synchronous frequency and ROCOF measurements | |
| Time sync via IRIG-B timecode or IEEE 1588 PTPv2 | |
| Reporting rates: 1 to 200/240 frames/s | |
| Expected steady-state TVE at nominal frequency: < 0.05% | |
| Streaming | |
| IEEE C37.118.2 UDP and TCP client-server transmission | |
| IEC 61850-9-2 multicast sampled value (SV) service | |
| 5 data streaming slots for continuous synchrophasor streaming | |
| Data includes | phasor estimates, frequency deviation, ROCOF, plus optional analog data (total P, Q, S, PF) and digital input status |
| Logging & Programming | |
| 32 control setpoints; half-cycle scan time | |
| Event recorder for internal diagnostic events, power faults | |
| 8 data recorders; 32 digital counters; 16 interval timers | |
| Current Inputs | 5A, 1A |
| Voltage Measurement | CAT III, up to 277/480 VAC |
