SATEC VRM – Voltage Ratio Module for High-Voltage DC Metering (Up to 1,500V DC)
SATEC

SATEC VRM – Voltage Ratio Module for High-Voltage DC Metering (Up to 1,500V DC)

SKU VRM
The SATEC VRM (Voltage Ratio Module) extends the DC voltage measurement range of SATEC PRO Series meters from 820V DC up to 1,500V DC – essential for solar PV, BESS, and EV charging DC bus metering. DIN-rail mount. Works with PRO Series HACS-model meters.
DIN Rail
Request Quote

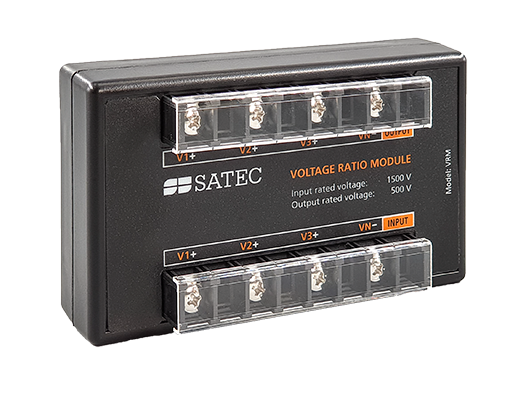

SATEC VRM – Voltage Ratio Module for DC High-Voltage Applications

The SATEC VRM (Voltage Ratio Module) is a DC voltage step-down accessory that extends the measurement range of SATEC PRO Series meters (HACS model) in high-voltage DC applications. While the PRO Series meter can directly measure DC voltages up to 820V, many modern DC systems – particularly solar PV arrays, Battery Energy Storage Systems (BESS), and EV fast-charging infrastructure – operate at bus voltages up to 1,500V DC.

The VRM bridges this gap by providing a calibrated voltage division, allowing the PRO Series meter to accurately measure the higher DC bus voltage without modification.

Specification

  • Input voltage: up to 1,500V DC
  • Output voltage: up to 820V DC (PRO Series meter compatible)
  • Powered directly from the DC bus being measured

Applications

  • Solar PV – string and inverter DC bus metering at 1,000–1,500V DC
  • BESS – Battery Energy Storage System DC bus monitoring
  • EV Charging – DC fast charging station metering

Compatible With

  • SATEC PRO Series meters (HACS model): PM335-HACS, EM235-HACS

Mounting

  • DIN-rail mount (35 mm standard)
