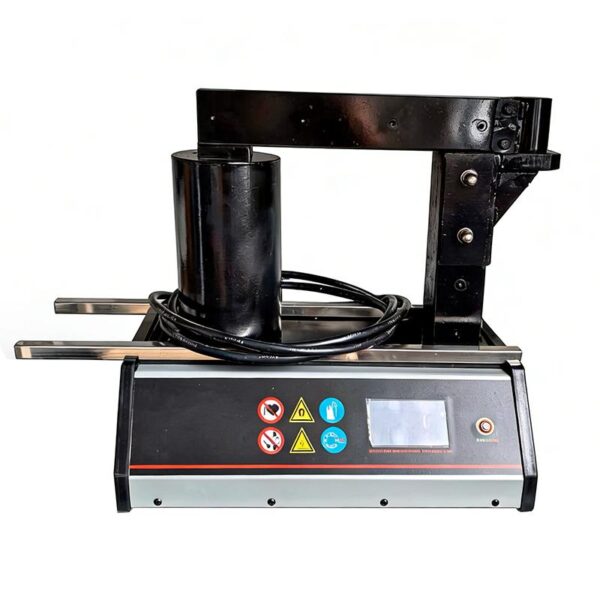

SOV RMD-100 Heavy-Duty Bearing Induction Heater 10 kW — Up to 150 kg, 380V Three Phase
SOV

SOV RMD-100 Heavy-Duty Bearing Induction Heater 10 kW — Up to 150 kg, 380V Three Phase

SKU SOV-RMD-100
The SOV RMD-100 is a heavy-duty industrial bearing induction heater rated at 10 kW for bearings and cylindrical metal parts up to 150 kg. Powered by 380V three-phase supply with a rotary heating rod system and fully automatic operation — designed for large motors, turbines, heavy compressors, and rolling mill equipment. Max outer diameter 720 mm, 240°C max temperature.
Request Quote
Lead time: 45 days after order confirmation and payment

SOV RMD-100 Bearing Induction Heater — Heavy-Duty 10 kW for Large Industrial Bearings

The SOV RMD-100 Bearing Induction Heater addresses the demands of heavy industrial maintenance where bearings weigh up to 150 kg and require precise, high-power induction heating for safe shaft installation. Running on 380V three-phase power, the RMD-100 delivers 10 kW of controlled induction energy through a rotary heating rod system that self-positions around the workpiece — the operator only needs to handle the part itself.

Self-Positioning Rotary Heating Rod

Unlike fixed-bar heaters, the RMD-100's rotary heating rod design eliminates manual rod repositioning during operation. The rod advances automatically, meaning the operator only needs to load and unload the workpiece — reducing operator handling, minimizing contamination from dust and iron chips, and improving repeatability.

Key Features

  • 10 kW three-phase induction power — fast heating cycles for large, heavy bearings
  • Rotary heating rod system — automatic rod positioning, no manual adjustment needed
  • Handles bearings up to 150 kg and outer diameters up to 720 mm
  • Intelligent microcomputer control — temperature-controlled and timed heating modes
  • Automatic demagnetization — prevents residual magnetism in critical bearing components
  • Overheat protection with automatic shutoff — safe for continuous workshop use
  • Three-phase 380V — integrates directly into heavy industrial electrical panels

Technical Specifications

Parameter Value
Model SOV-RMD-100
Supply Voltage 380V / Three Phase
Frequency 50/60 Hz
Power Input 10 kW
Current Draw 25 A
Max Temperature 240°C
Min. Internal Dia. (Hang) 45 mm
Min. Internal Dia. (Level) 140 mm
Max Outer Dia. 720 mm
Max Width (Hang) 195 mm
Max Width (Level) 215 mm
Max Bearing Weight 150 kg
Max Other Parts Weight 100 kg
Unit Dimensions 540 × 330 × 500 mm
Unit Weight 85 kg

Typical Applications

The RMD-100 is used in heavy industrial maintenance for large AC/DC motors, industrial compressors, gas turbine accessories, rolling mill bearings, heavy-duty gearboxes, and large pumping systems. Standard equipment in power generation plants, steel mills, cement plants, and petrochemical facilities. Lead Time: Please allow 45 days for delivery after order confirmation and payment. All units ship FOB Shanghai.
