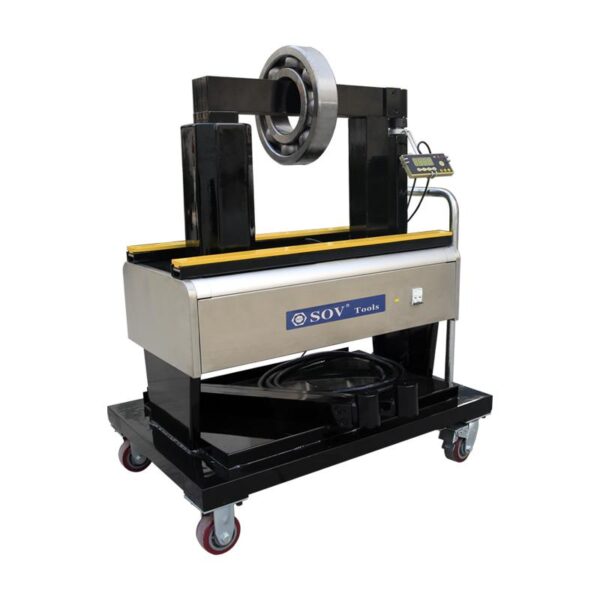

SOV RMD-150 Extra Heavy-Duty Bearing Induction Heater 15 kW — Up to 450 kg, 380V
SOV

SOV RMD-150 Extra Heavy-Duty Bearing Induction Heater 15 kW — Up to 450 kg, 380V

SKU SOV-RMD-150
The SOV RMD-150 is SOV's largest portable bearing induction heater, delivering 15 kW of induction power for bearings and circular metal parts up to 450 kg. Designed for maintenance workshops and production floors handling the largest industrial bearings — max outer diameter 1020 mm. Features rotary heating rod, intelligent microcomputer control, and built-in caster wheels for shop floor mobility. 380V two-phase supply.
Request Quote
Lead time: 45 days after order confirmation and payment

SOV RMD-150 Bearing Induction Heater — Maximum Capacity 15 kW for the Largest Industrial Bearings

The SOV RMD-150 Bearing Induction Heater represents the top of the SOV RMD range — a 15 kW, 380V heavy-duty induction heating system built for the largest bearings found in industrial production and maintenance environments. With a maximum bearing capacity of 450 kg and a maximum outer diameter of 1020 mm, the RMD-150 handles shaft and bearing assemblies that no lighter heater can approach.

Built for the Workshop Floor

At 275 kg and 1460×700×1100 mm, the RMD-150 is a workshop-stationary unit designed to stay on the production floor. It features heavy-duty caster wheels for repositioning within the workshop, a rotary heating rod that self-positions around the workpiece, and a robust stainless steel worktable that withstands continuous industrial use.

Key Features

  • 15 kW induction power — maximum heating capacity for bearings up to 450 kg
  • Max outer diameter 1020 mm — covers the largest industrial bearing sizes
  • Rotary heating rod, intelligent control, movable microcomputer panel
  • Built-in heavy-duty caster wheels — repositionable within the workshop
  • Stainless steel worktable — durable, corrosion-resistant work surface
  • Automatic demagnetization — critical for large precision bearings
  • 380V two-phase supply — T/T or L/C payment accepted
  • Heating modes: constant temperature and timed — operator sets target, unit maintains it

Technical Specifications

Parameter Value
Model SOV-RMD-150
Supply Voltage 380V / Three Phase
Frequency 50/60 Hz
Power Input 15 kW
Current Draw 38 A
Max Temperature 240°C
Min. Internal Dia. (Hang) 60 mm
Min. Internal Dia. (Level) 180 mm
Max Outer Dia. 1020 mm
Max Width (Hang) 375 mm
Max Width (Level) 315 mm
Max Bearing Weight 450 kg
Max Other Parts Weight 600 kg
Unit Dimensions 1460 × 700 × 1100 mm
Unit Weight 275 kg

Typical Applications

The RMD-150 is used in maintenance workshops and production facilities handling the largest industrial equipment: heavy turbine generators, large rolling mills, marine propulsion systems, mining equipment, paper mill rolls, and other heavy rotating machinery where bearings exceed 100 kg and precise thermal fitting is critical. Lead Time: Please allow 45 days for delivery after order confirmation and payment. All units ship FOB Shanghai.
